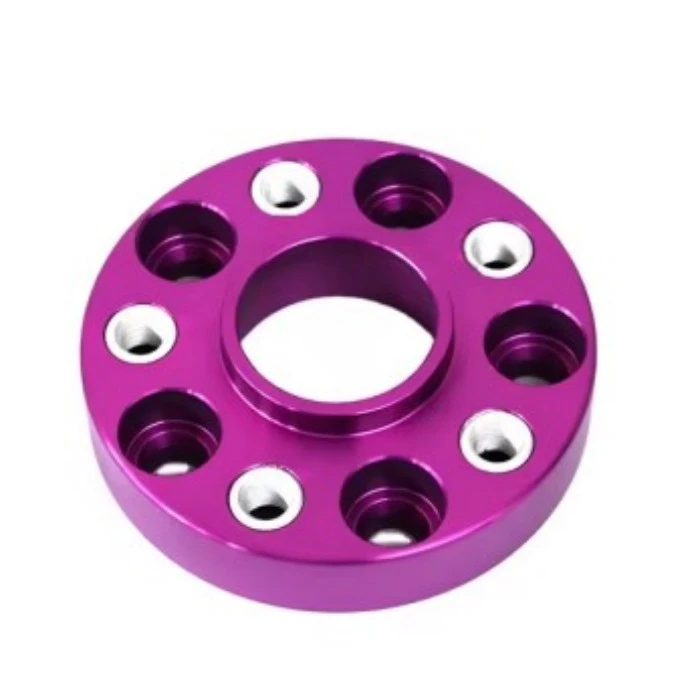

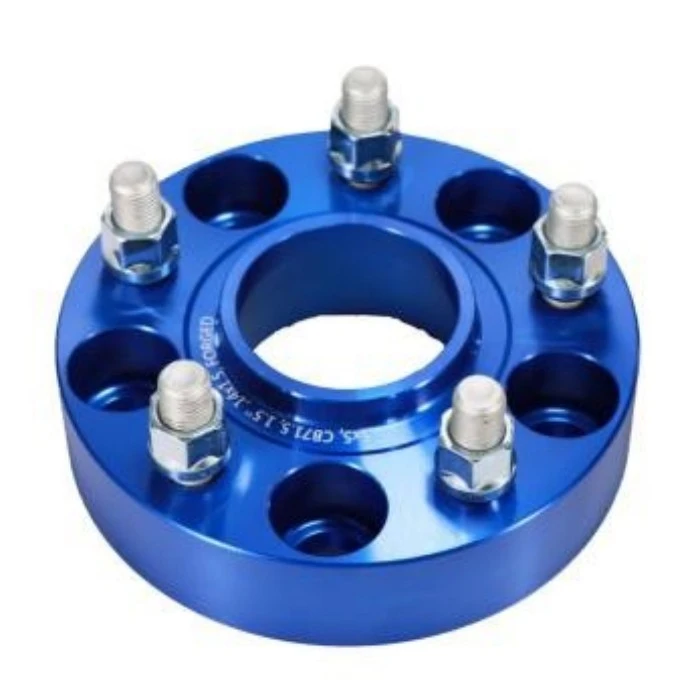

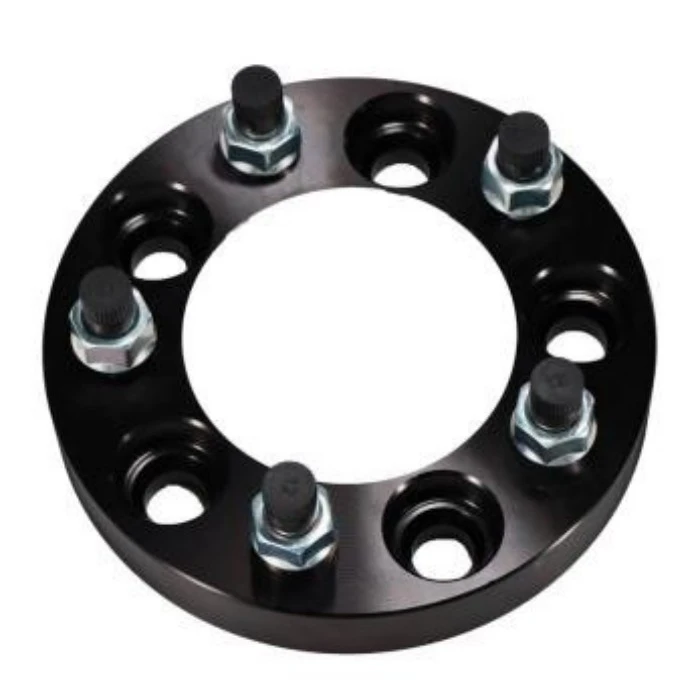

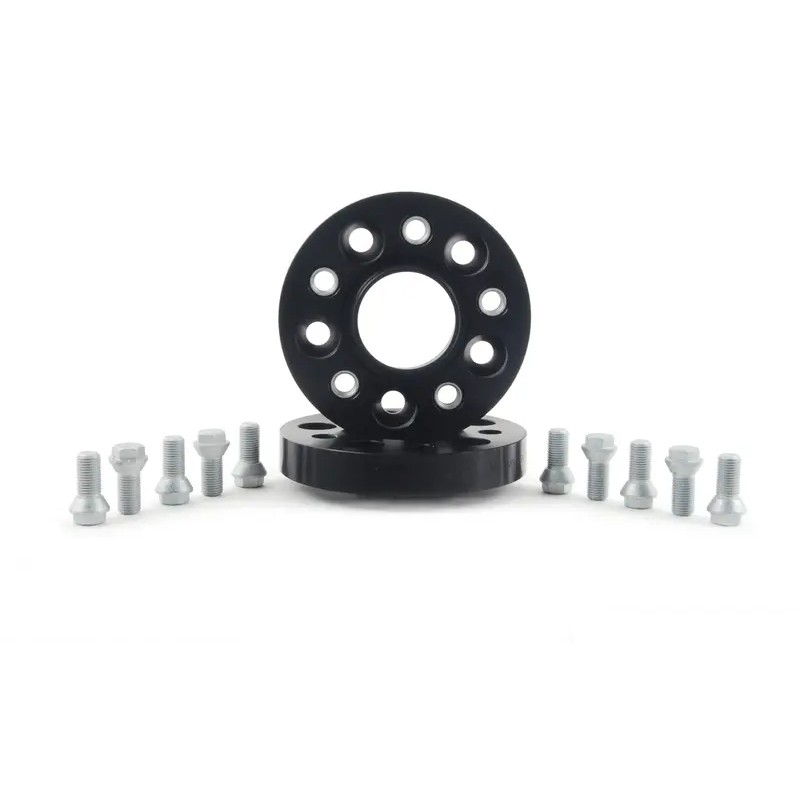

Mercedes Wheel Spacers Adapter

With 20 years of manufacturing experience in automotive wheel nuts, wheel bolts, and wheel adapters, J&W Auto Parts is a reliable Chinese manufacturer offering OEM/ODM customization services. Our Mercedes wheel spacers adapters are crafted from high-quality magnesium-aluminum alloy; they are available in various specifications and sizes, with a minimum order quantity of just two units.

What Problems Do Our Mercedes Wheel Spacers Adapters Solve?

1. Wheel Fitment Issues

Different Mercedes models may feature varying PCDs, center bore sizes, and offsets (ET values). J&W Auto Parts' Mercedes wheel spacers adapters serve as an interface between the wheel and the vehicle, enabling the safe installation of aftermarket or non-standard specification wheels.

2. Track Width Adjustment

By increasing the distance between the wheel and the vehicle body, these adapters widen the vehicle's track, enhancing its visual stance.

This upgrade is highly recommended for SUVs, performance vehicles, and modified cars; using wheel spacers adapters is a popular modification choice.

3. Optimized Handling Stability

Properly specified wheel spacers adapters adjust the vehicle's track width, resulting in improved high-speed stability and better cornering support.

Different vehicle models require specific thicknesses, bolt patterns, and center bore sizes. We offer standard solutions as well as custom options; please refer to the specifications table below for details.

Product Specifications

Note on Product Selection: Our product range covers both wheel spacers (same PCD on both faces, thickness typically 10–20mm) and wheel adapters (different PCDs, thickness typically 25mm and above). Please confirm your vehicle's original PCD and the target wheel's PCD before ordering. If they differ, you require an adapter; if they are the same, a spacer suffices.

How to Choose the Right Mercedes Wheel Spacers Adapter?

1. Confirm the Mercedes Model and Year

Different Mercedes-Benz models—even within the same series—may utilize different wheel mounting specifications.

Before selecting a wheel spacer adapter, you need to confirm:

● Vehicle make and model

● Year of manufacture

● OEM wheel specifications

● Original wheel mounting parameters

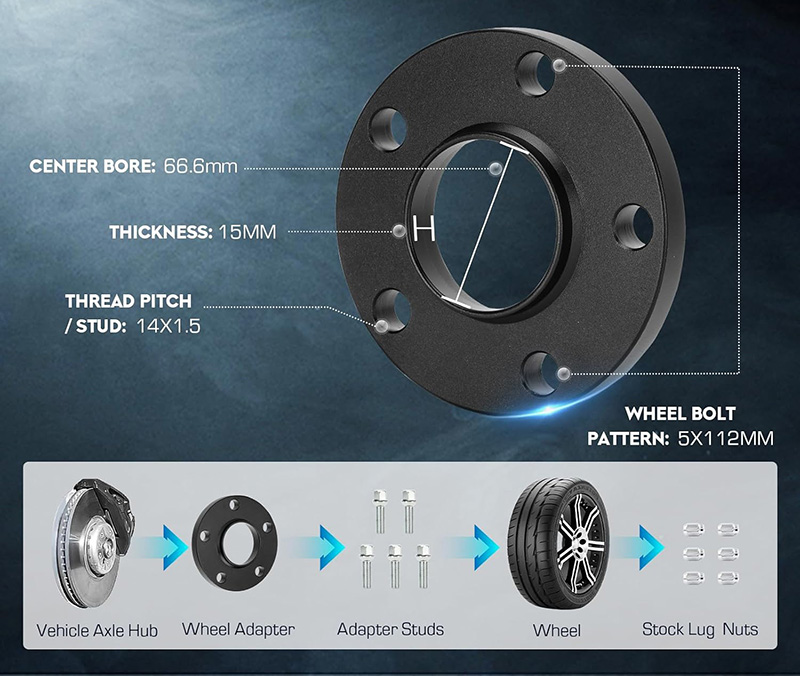

2. Confirm the Bolt Pattern (PCD)

The products offered by J&W Auto Parts feature a 5-bolt pattern; the bolt circle diameter (PCD) must be selected based on your specific vehicle requirements.

Please confirm your vehicle's PCD; we can provide a matching adapter solution based on the vehicle information and wheel parameters you provide.

3. Check the Center Bore Size

The center bore determines the alignment precision between the wheel and the vehicle's wheel hub;

you must verify the vehicle's hub bore size when making your selection.

4. Choose the Appropriate Adapter Thickness

The thickness of the Mercedes wheel spacer adapter directly affects the positioning of the wheel relative to the vehicle body. We offer thickness options of 10mm, 15mm, and 20mm.

If you wish to position the wheel closer to the fender, you can opt for increased thickness; please consult J&W Auto Parts to discuss the best solution.

5. Confirm Bolt Specifications

You need to confirm:

● Bolt Size

● Thread Pitch

● Bolt Length

● Seat Type

Insufficient bolt length may compromise fastening strength, while excessive length can cause installation interference.

Vehicle Compatibility Chart

Installation Guide

I. Pre-installation Preparation and Cleaning

1. Remove rust from the bearing surface

Over time, the surface of OEM Mercedes-Benz wheel hubs can accumulate rust or grime. Before installation, use a wire brush or sandpaper to thoroughly remove rust from the hub's shoulder and mating surfaces.

2. Keep surfaces dry and clean

After removing rust, spray the surface with brake cleaner. Do not apply heavy grease to the contact surfaces between the hub and the adapter.

3. Check fitment (Dry Fit Test)

Before fully tightening the bolts, place the adapter onto the vehicle's hub to ensure the center bore fits snugly and precisely.

II. Bolt Tightening and Torque Specifications

1. Do not use pneumatic impact wrenches for final tightening:

Pneumatic impact wrenches cannot provide precise torque control; they can easily cause uneven stress leading to slight adapter deformation or bolt stretching.

You must perform initial tightening by hand and complete the process using a professional torque wrench for precise final tightening.

2. Strictly follow the diagonal tightening pattern

Whether securing the adapter to the hub or the wheel to the adapter, you must tighten the bolts in stages using a diagonal (star) pattern, gradually increasing the force.

3. Apply standard Mercedes-Benz torque

The recommended tightening torque ranges from 130 Nm to 150 Nm, depending on the specific vehicle model.

4. Ensure sufficient thread engagement depth

If using a spacer with extended bolts, ensure the bolt threads into the hub by at least 7–8 full turns, or achieves an engagement depth of 10–12 mm.

III. Post-Installation Safety Checks and Re-inspection

1. Check fender clearance

After installation is complete and the vehicle has been lowered to the ground, turn the steering wheel fully to the left and right. Check to ensure there is a minimum safety clearance of 5mm between the tire and the fender, the wheel well liner, and the brake caliper.

2. Mandatory re-inspection after 100 km of driving

This is a recognized safety standard in the international automotive modification industry. After driving 50 to 100 kilometers (or miles) following the installation of the adapters, you must return to the workshop to re-check and re-tighten all bolts using a torque wrench.

J&W Auto Parts: A Commitment to Technical Excellence

As a trusted supplier to numerous global Mercedes-Benz modification brands and wholesalers, J&W eliminates installation risks right at the source:

✔ Zero-Tolerance CNC Precision

Our Mercedes wheel spacers adapters are precision-machined from solid blocks using high-accuracy CNC equipment. Engineered to exact OEM specifications, they prevent installation issues caused by manufacturing defects.

✔ High-Strength Thread Integrity

Designed to withstand high-torque tightening, our adapters' threaded inserts and accompanying extended bolts meet Grade 10.9 or 12.9 high-strength standards, ensuring resistance against thread stripping and stretching.

✔ 24/7 Technical Support

Our engineering team provides round-the-clock technical consultation to global distributors, assisting your end customers in resolving complex chassis fitment issues.

How to Order Mercedes Wheel Spacers Adapters?

● Purchase Information Form

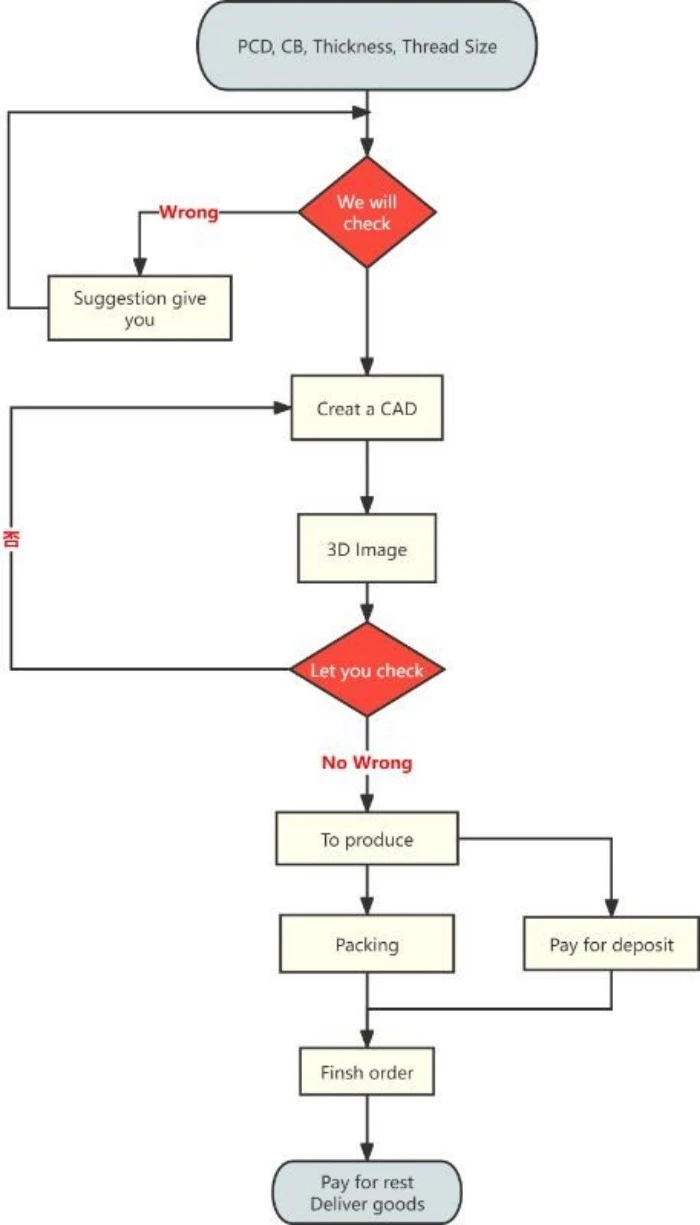

● Procurement Process

1. Provide product requirement information

Recommended details:

Mercedes-Benz model and year

Original wheel specifications

PCD (Bolt Pattern)

Center Bore size

Required adapter thickness

Order quantity

OEM/ODM customization requirements

2. Specification confirmation and solution recommendation

Upon receiving your requirements, J&W Auto Parts will evaluate the vehicle and wheel specifications, confirm the specific solution, and provide a 3D model for your approval.

3. Sample confirmation (optional)

You may request samples for testing prior to bulk purchasing. This allows for verification of fitment, installation, appearance, and performance.

4. Order confirmation and production scheduling

Once product specifications, quantities, packaging requirements, delivery times, and payment terms are confirmed, J&W Auto Parts will schedule production.

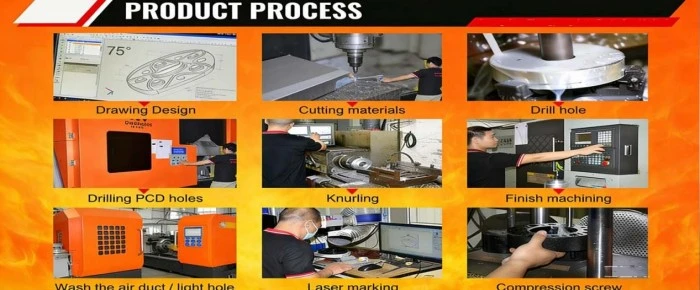

5. Production progress tracking and quality inspection

The process includes: Raw Material Inspection → Precision Machining → Surface Treatment → Dimensional Inspection → Final Quality Check → Packaging

6. Product packaging and shipping

After the order is completed and passes final inspection, products are packaged according to export standards.

J&W Auto Parts supports various shipping methods, including sea freight, air freight, and express delivery.

If you have a freight forwarder in China, we can also arrange delivery to your designated agent's warehouse.

7. Receipt confirmation and after-sales support

If, upon receipt, you discover quality issues, specification discrepancies, or encounter anomalies during use,

please contact J&W Auto Parts promptly; our team will provide an appropriate solution based on the specific situation.

FAQ

Q1: How do I calculate the thickness for installing Mercedes wheel spacers adapters?

A: When selecting the adapter thickness, you need to consider the original wheel offset (ET), the new wheel offset, and the desired fitment position.

Simple calculation:

Installed ET ≈ Original wheel ET - Adapter thickness

Example: If the original wheel is ET45 and you use a 15mm adapter, the effective installed ET is 45 - 15 = ET30. Lowering the ET moves the wheel outward by 15mm.

In practice, you must also consider tire width, fender clearance, suspension geometry, and steering angle.

Q2: Do I need to replace the wheel bolts after installing Mercedes wheel spacers adapters?

A: It depends on the adapter thickness; since the adapter increases the mounting distance, the original factory bolts may not be long enough.

You need to verify the effective thread engagement length, thread specifications, bolt seat type, and fastening strength.

Using bolts that are too short can compromise the reliability of the wheel connection.

Q3: What modification scenarios are Mercedes wheel spacers adapters suitable for?

A: ✔ Installing aftermarket (non-OEM) wheels

✔ Adapting wheels with different PCDs

✔ Widening the track for a better visual stance

✔ Improving clearance between tires and suspension

✔ General vehicle modification projects

✔ Upgrading to AMG-style wheels

Q4: Can Mercedes wheel spacers adapters be customized?

A: Yes. J&W Auto Parts offers OEM/ODM customization services tailored to customer needs, including:

✔ PCD (bolt pattern) customization

✔ Center bore customization

✔ Product thickness customization

✔ Surface finish customization

✔ Logo/branding customization

✔ Packaging customization

We provide exclusive product solutions designed to meet the specific market demands of automotive modification brands, wheel distributors, and bulk purchasers.
