M14x1.5 Locking Conical Seat Wheel Lug Bolt

J&W Auto Parts is a China-based automotive fastener manufacturer specializing in wheel bolts, lug nuts and customized fastening solutions. We present these M14x1.5 Locking Conical Seat Wheel Lug Bolts for compatible wheels with a 60-degree conical seat and hubs with an M14x1.5 thread. This lug bolt combines material integrity, thread precision, and theft deterrence in one package. Our company has 20 years of experience in automotive fastener production. The conical seat bears against the wheel recess, while the unique locking pattern, paired with a dedicated key, effectively reduces the risk of wheel theft. Quality checks cover raw material composition, hardness, thread dimensions and coating performance, ensuring that the finished product meets the approved order specification.

Product Highlights

Based on our design and production experience, the M14x1.5 Locking Conical Seat Wheel Lug Bolts stand out with the following features.

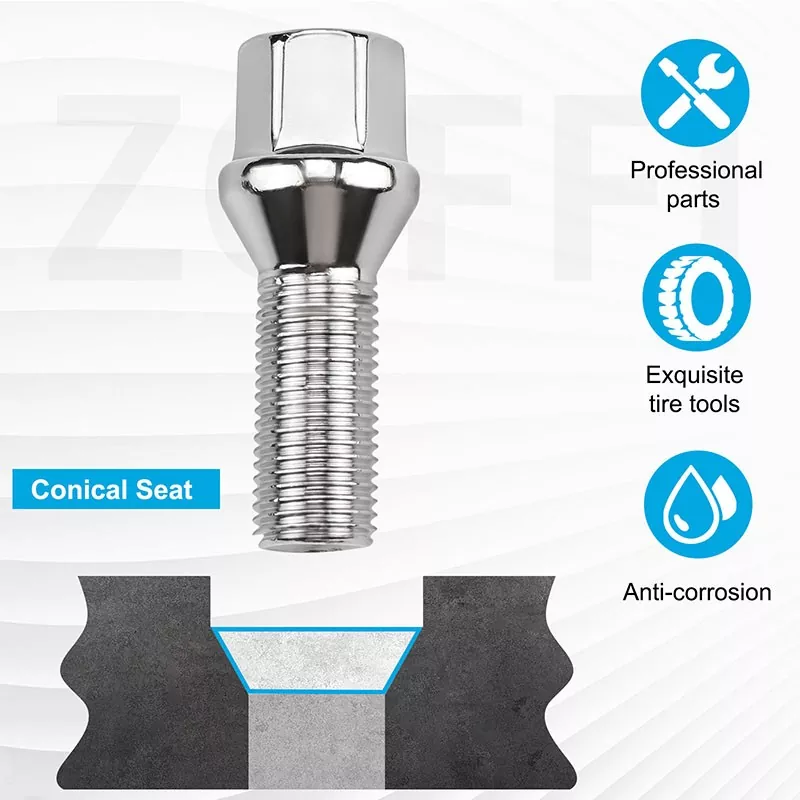

1. Conical seat design. The 60-degree taper matches wheels specified for this seat geometry. The thread engages the hub, while the seat transfers clamping force to the wheel. Confirm the seat angle and working length; an M14x1.5 thread alone does not establish fitment.

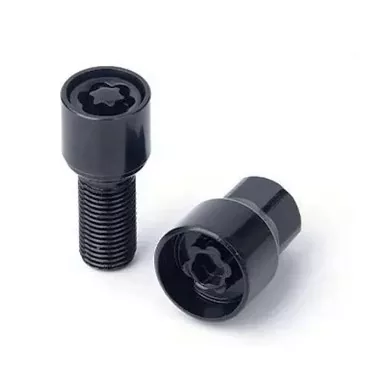

2. Integrated locking mechanism. A dedicated key engages the locking head to help prevent unauthorized wheel removal. Confirm the number of locking bolts and matching keys per set; the key adapter is available with the tool interfaces listed below.

3. High-strength alloy steel. Selected for its tensile strength and fatigue resistance, processed through controlled heat treatment.

4. CNC machined threads. Ensure smooth installation and consistent torque application.

These highlights directly address the daily concerns of drivers and fleet operators: wheel security and long-term retention.

Specifications

The listed seat, property class, finish and key interface are ordering options across the series. Confirm the exact combination and retail pack contents before purchasing.

Conical Seat vs Ball Seat Wheel Bolts

Material Selection and Heat Treatment

J&W Auto Parts uses high-strength alloy steel for the M14x1.5 Locking Conical Seat Wheel Lug Bolts to achieve a balanced combination of strength, toughness and fatigue resistance.

Controlled quenching and tempering develop the strength and toughness required by the ordered property class. Grade 10.9 and Grade 12.9 are finished-bolt classifications; hardness must be assessed against the applicable specification together with the other mechanical requirements. A higher property class does not authorize a higher wheel installation torque.

Each production batch is verified through:

· Material composition analysis by spectrometer

· Hardness testing

· Thread dimensional inspection

· Salt spray corrosion testing

For quality validation, our internal laboratory performs clamp force and fatigue testing on production samples. Detailed test reports, including raw data, are available for qualified B2B customers upon request.

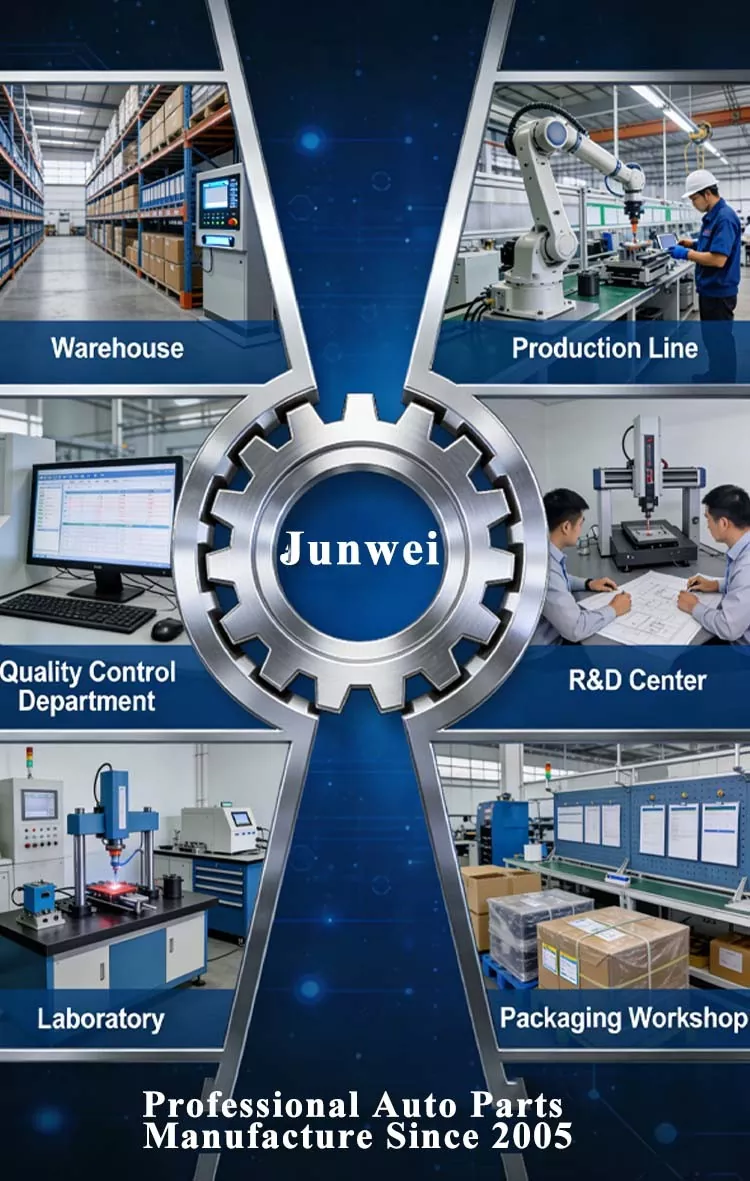

Manufacturing Infrastructure and Quality Control

Our production base in Ningbo, Zhejiang, employs more than 100 skilled workers. The following equipment supports bolt forming, machining and surface finishing.

1. 12 large cold heading machines.

2. Over 20 machining centers.

3. Secondary forming and machining equipment supports the wider fastener range.

4. An automatic electroplating production line.

This vertically integrated setup connects wire rod forming, machining and surface finishing. Cold heading forms the bolt blanks, while CNC machining controls the specified dimensions. For this locking bolt series, the relevant inspection points include the 60-degree seat, thread geometry, working length and matching key engagement. Coating selection must also suit the bolt property class and address hydrogen embrittlement risk where electroplating is used.

We fully implement 5S management across our workshop: Sort, Set in order, Shine, Standardize, and Sustain. This system reduces waste, prevents errors, and ensures that inspection points are clearly defined. Our quality control department is equipped with a spectrometer, hardness tester, and salt spray tester, enabling comprehensive material and performance checks. Every production lot of the Locking Conical Seat Wheel Lug Bolts is subject to these rigorous protocols, guaranteeing that you receive products with consistent quality, whether you order 100 pieces or 10,000.

Application and Vehicle Compatibility

These M14x1.5 locking bolts are intended for wheel and hub combinations that require both an M14x1.5 thread and a 60-degree conical seat. Some aftermarket wheels use a different seat from the vehicle's original wheels, so the vehicle brand or model name alone is insufficient. Check the exact model year, hub thread, wheel specification, working length and clearance for the security key. Vehicles using wheel studs and nuts require a different fastening arrangement.

Our bolts are available in various lengths and finishes, allowing you to select the best match for your specific wheel and driving environment. Fleet buyers should also define how key patterns are assigned and recorded across vehicles, so workshops can identify the correct key during routine tire changes.

Sample Fitment Checks for Workshops

Approve a sample on the intended front and rear wheel assemblies before ordering a mixed fleet or distributor range.

Thread and seat

Confirm M14x1.5 hub threads and a 60-degree conical wheel recess. Do not replace a ball seat bolt solely because the thread matches.

Working length

Use the same seat reference on the drawing and sample. Check adequate engagement without bottoming out or interference behind the hub.

Key access

Check that the locking head and key enter the wheel recess freely, with the key pattern fully engaged before applying torque.

Set contents

Record the locking bolt quantity, key quantity, selected adapter hex and any supplied key identifier on the packing specification.

Repeat orders

Retain the approved drawing revision and sample reference so seat geometry, length and key configuration remain consistent.

Quality Documentation for B2B Buyers

Review quality documentation against the exact product and production site before approving an order. Management system certificates, product test reports and destination-market approvals serve different purposes.

ISO 9001: Check the certificate holder, manufacturing scope and validity when reviewing a supplier's quality management system. A management system certificate does not by itself verify the dimensions or fitment of a particular wheel bolt.

IATF 16949: Automotive quality management certification concerns the certified site's processes and scope. It does not establish that a wheel lock is approved by a particular vehicle manufacturer or suitable for every wheel on that vehicle.

Product Test Reports: Match the tested part number, material, property class and finish to the ordered bolt. Tensile or fatigue results apply to the tested configuration and method; a report for another bolt does not automatically cover this locking version.

Third-Party Verification: Where an SGS, TUV or other independent report is supplied, review its issuer, report number, test scope and product identification. A factory audit and a product performance test answer different procurement questions.

Destination-Market Documentation: Identify the applicable requirements for the product and destination market. Review the exact scope of any approval document rather than treating a general certificate as approval for all wheel fasteners.

Customization and OEM/ODM Services

We understand that not all applications are standard. J&W Auto Parts offers comprehensive custom services for the Locking Conical Seat Wheel Lug Bolts and our entire fastener range.

1. Custom lengths to accommodate wheels with different mounting flange thicknesses.

2. Surface finishes tailored to your corrosion protection requirements, with the coating, test method and acceptance criterion agreed together.

3. Laser marking with your logo or part numbers.

4. Packaging options: branded boxes, blister packs, or bulk packaging as per your requirements.

5. Non-standard thread sizes or head designs based on your drawings or samples.

Our technical team, which includes mechanical design and metal processing experts, collaborates with you to develop the right solution. With decades of experience and flexible production capacity, we can handle both small-batch prototype orders and large-volume production runs.

Why Choose J&W Auto Parts？

When you source M14x1.5 Locking Conical Seat Wheel Lug Bolts from us, you benefit from the following.

1. Advanced manufacturing facilities. Our 12 cold heading machines and over 20 machining centers enable high precision and fast turnaround.

2. Strict quality management. Our 5S system, in-house spectrometer, hardness tester, and salt spray tester ensure every batch meets our standards.

3. Professional technical team. Continuous improvement and simulation testing help optimize product design for safety.

4. Efficient supply chain. Located near Ningbo Port, we ship globally with competitive lead times.

5. Proven track record. We serve customers across Europe, North America, and Southeast Asia, both distributors and OEMs.

6. Our Warranty: We offer a 12-month warranty against manufacturing defects in materials and workmanship. Any quality-related issues reported within this period will be covered by free replacement.

FAQ

Q1: How do I confirm that my wheels use conical seat bolts?

Check the wheel manufacturer's specification for a 60-degree conical recess, and verify the hub thread separately. An aftermarket wheel may require a different seat from the original wheel. Match the working length and confirm access for the locking key as well as the bolt head.

Q2: What is the recommended tightening torque for these bolts?

Use the torque specified for the actual vehicle, wheel and approved fastener combination. There is no universal torque value for all M14x1.5 locking bolts. Start by hand, tighten progressively in a crisscross pattern, and use a calibrated torque wrench for final tightening. Keep the matching key fully and squarely engaged.

Q3: What do the salt spray hours mean for rust protection?

Standard black zinc plating options achieve 72-120 hours of salt spray resistance, while Dacromet options can achieve 480 hours or more, according to the selected specification. Agree the test method and corrosion acceptance criterion for the ordered finish. Laboratory hours cannot be converted directly into a fixed number of years on a vehicle.

Q4: Can I order custom packaging or branding?

Yes. We offer OEM/ODM services including custom packaging, laser engraving, and special lengths. Just provide your specifications, and we will produce accordingly.

Q5: Do you provide samples before mass production?

Absolutely. We offer pre-production samples for fitment and quality validation. Confirm the sample configuration and schedule with the quotation. Use the sample to check thread engagement, seat contact, working length and key clearance before approving bulk supply.

Q6: What is the typical lead time for bulk orders?

Bulk production timing depends on order quantity, surface finish requirements and customization. We confirm the schedule for the selected configuration upon order placement.

Q7: Can I obtain a replacement locking key if mine is lost?

Yes. Each set includes one key, and we keep key pattern records so a replacement can be identified from the order records. Keep the order reference and any supplied key identifier separately from the key. The same 17 mm or 19 mm hex size does not mean two security keys share the same locking pattern.

Q8: Are conical seat wheel bolts better than ball seat bolts?

Choose the seat specified by the wheel manufacturer. A 60-degree conical seat fits a matching tapered wheel recess; a ball seat requires the correct radius. Either design can be appropriate when correctly matched. The wheel material or vehicle brand alone does not determine the required seat.

A fatigue comparison cannot justify substituting one seat design for another. Fitment approval must use the actual wheel, hub, working length and installation specification. The security pattern controls tool access; it does not correct a mismatched seat or insufficient thread engagement.

Q9: Can a locking bolt fit while its key does not fit the wheel?

Yes. A narrow or deep wheel recess may admit the bolt but restrict the outside diameter or usable reach of the key adapter. Check the complete bolt-and-key combination during sample approval. The key must engage fully without bearing against the wheel recess.

How to Choose M14x1.5 Wheel Lug Bolts?

Use the following checks to select the correct configuration for the actual wheel and hub:

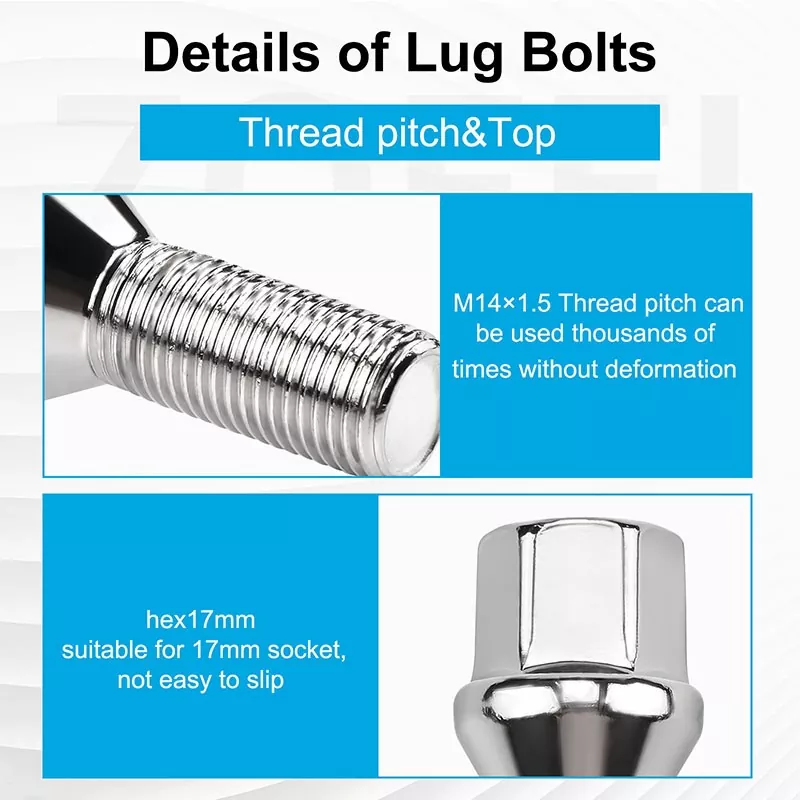

· Thread measurement: Verify the M14 nominal diameter and 1.5 mm pitch. M14x1.25 is a different thread and is not interchangeable.

· Seat type: Confirm a 60-degree conical recess in the wheel, rather than assuming compatibility from the original vehicle brand.

· Bolt length: Specify working length from the drawing's seat reference to the tip. Overall length includes the locking head and is not a substitute.

· Strength grade: Order the required property class for the approved application; do not select installation torque from the grade alone.

· Surface coating: Define the finish, corrosion test conditions and acceptance criterion, and retain the same approved configuration for repeat orders.

Working Length with Slip-On Spacers

When the wheel, seat geometry and measurement datum stay the same, a slip-on spacer adds its thickness to the required bolt working length. For example, an approved 28 mm working length with a 10 mm slip-on spacer gives an initial calculated requirement of 38 mm. This is a selection example, not a listed stock size or fitment approval.

Confirm actual thread engagement and clearance behind the hub before use. A longer bolt must not bottom out or contact other components. Bolt-on adapters may use a separate fastening arrangement, so this calculation should not be applied automatically to them.

Installation and Key Care

Clean the wheel seat and threads, then start each bolt by hand. Stop if it binds. Keep threads and seats free of added oil, grease or anti-seize unless the applicable installation instructions require them; lubrication changes the relationship between torque and clamping force.

Use hand tools with the matching key fully seated and held square to the locking head. Avoid impact tools on the security key. Tighten progressively in a crisscross pattern, finish with a calibrated torque wrench, and follow the specified torque recheck interval for the wheel and fastener combination.

Keep the key accessible for tire service and verify spare-wheel compatibility separately. If the spare needs a different seat or bolt length, retain its approved fasteners in the vehicle. Do not force a damaged or mismatched key into the locking head.

Contact J&W Auto Parts for M14x1.5 Locking Wheel Lug Bolts

Looking for a reliable manufacturer of M14x1.5 locking conical seat wheel lug bolts?

Contact J&W Auto Parts for product specifications, quotation, samples, OEM customization and technical support.

Please provide your required:

· Thread size

· Working length and measurement datum

· Surface finish

· Required quantity

· Seat angle, key configuration, packaging and marking requirements

Our sales and engineering team will review your requirements and provide feedback within 24 hours.
